| 型號 Size |
傳動比 Ratio |

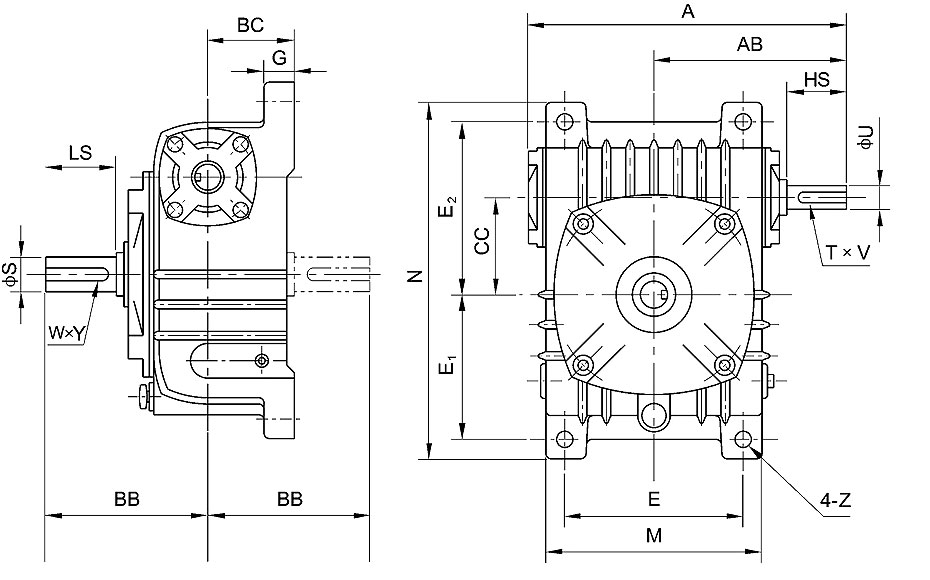

A | AB | BB | BC | CC | M | N | E | E1 | E2 | G | Z | 輸入軸Input Shaft | 輸出軸 Output Shaft | 重量 Weight (Kg) |
||||
| HS | U | TxV | LS | S | WxY | |||||||||||||||
| 40 | 10 15 20 25 30 40 50 60 |
143 | 87 | 74 | 45 | 40 | 94 | 184 | 70 | 74 | 86 | 10 | 10 | 25 | 12 | 4x2.5 | 28 | 14 | 5x3 | 5 |
| 50 | 175 | 107 | 97 | 50 | 50 | 116 | 220 | 90 | 93 | 102 | 15 | 12 | 30 | 12 | 4x2.5 | 40 | 17 | 5x3 | 6 | |
| 60 | 198 | 122 | 112 | 55 | 60 | 126 | 260 | 100 | 105 | 120 | 20 | 12 | 40 | 15 | 5x3 | 50 | 22 | 6x3.5 | 10 | |
| 70 | 231 | 140 | 131 | 65 | 70 | 156 | 295 | 120 | 120 | 135 | 20 | 15 | 40 | 18 | 6x3.5 | 60 | 28 | 8x4 | 15 | |
| 80 | 261 | 160 | 142 | 70 | 80 | 175 | 320 | 140 | 130 | 150 | 20 | 15 | 50 | 22 | 6x3.5 | 65 | 32 | 10x5 | 20 | |
| 100 | 322 | 190 | 169 | 90 | 100 | 224 | 375 | 190 | 155 | 180 | 26 | 15 | 50 | 25 | 8x4 | 75 | 38 | 10x5 | 35 | |
| 120 | 381 | 229 | 190 | 100 | 120 | 266 | 450 | 220 | 185 | 215 | 30 | 18 | 65 | 30 | 8x4 | 85 | 45 | 14x5.5 | 50 | |
| 135 | 433 | 260 | 210 | 110 | 135 | 306 | 495 | 260 | 210 | 235 | 30 | 18 | 75 | 35 | 10x5 | 95 | 55 | 16x6 | 75 | |
| 155 | 504 | 302 | 252 | 140 | 155 | 350 | 590 | 290 | 245 | 295 | 35 | 21 | 85 | 40 | 12x5 | 110 | 60 | 18x7 | 115 | |
| 175 | 545 | 325 | 262 | 150 | 175 | 394 | 640 | 320 | 267 | 323 | 40 | 21 | 85 | 45 | 14x5.5 | 110 | 65 | 18x7 | 140 | |
| 200 | 587 | 350 | 305 | 175 | 200 | 440 | 710 | 370 | 290 | 360 | 40 | 24 | 95 | 50 | 14x5.5 | 125 | 70 | 20x7.5 | 200 | |
| 250 | 705 | 420 | 360 | 200 | 250 | 510 | 860 | 440 | 350 | 440 | 45 | 28 | 110 | 60 | 18x7 | 155 | 90 | 25x9 | 340 | |
