| 型號 Size |
傳動比 Ratio |

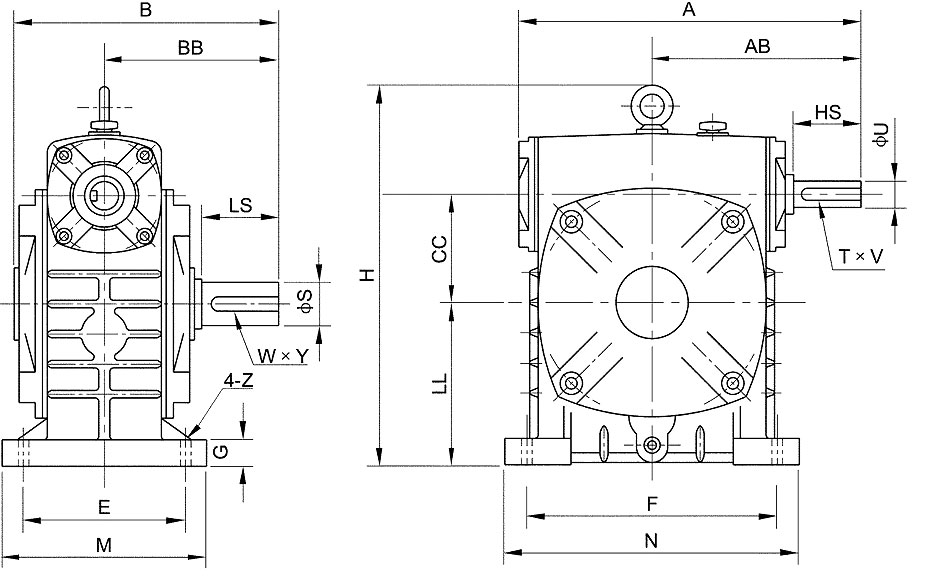

A | AB | B | 6B | CC | H | HL | M | N | E | F | G | Z | 輸入軸Input Shaft | 輸出軸 Output Shaft | 重量 Weight (Kg) |
||||
| HS | U | TxV | LS | S | WxY | ||||||||||||||||
| 40 | 10 15 20 25 30 40 50 60 |
143 | 87 | 114 | 74 | 40 | 141 | 60 | 90 | 100 | 70 | 80 | 13 | 10 | 25 | 12 | 4x2.5 | 28 | 14 | 5x3 | 4 |
| 50 | 175 | 107 | 150 | 97 | 50 | 180 | 80 | 120 | 140 | 95 | 110 | 15 | 12 | 30 | 12 | 4x2.5 | 40 | 17 | 5x3 | 7 | |
| 60 | 198 | 122 | 168 | 112 | 60 | 207 | 90 | 130 | 150 | 105 | 120 | 20 | 12 | 40 | 15 | 5x3 | 50 | 22 | 6x3.5 | 10 | |
| 70 | 231 | 140 | 194 | 131 | 70 | 238 | 105 | 150 | 190 | 115 | 150 | 20 | 15 | 40 | 18 | 6x3.5 | 60 | 28 | 8x4 | 15 | |
| 80 | 261 | 160 | 214 | 142 | 80 | 270 | 120 | 170 | 220 | 135 | 180 | 20 | 15 | 50 | 22 | 6x3.5 | 65 | 32 | 10x5 | 20 | |
| 100 | 322 | 190 | 254 | 169 | 100 | 331 | 150 | 190 | 270 | 155 | 220 | 25 | 15 | 50 | 25 | 8x4 | 75 | 38 | 10x5 | 35 | |
| 120 | 381 | 229 | 282 | 190 | 120 | 423 | 180 | 230 | 320 | 180 | 260 | 30 | 18 | 65 | 30 | 8x4 | 85 | 45 | 14x5.5 | 60 | |
| 135 | 433 | 260 | 317 | 210 | 135 | 482 | 215 | 250 | 350 | 200 | 290 | 30 | 18 | 75 | 35 | 10x5 | 95 | 55 | 16x6 | 80 | |
| 155 | 504 | 302 | 382 | 252 | 155 | 541 | 235 | 275 | 390 | 220 | 320 | 35 | 21 | 85 | 40 | 12x5 | 110 | 60 | 18x7 | 110 | |
| 175 | 545 | 325 | 402 | 262 | 175 | 594 | 260 | 310 | 430 | 250 | 350 | 40 | 21 | 85 | 45 | 14x5.5 | 110 | 65 | 18x7 | 150 | |
| 200 | 587 | 350 | 467 | 305 | 200 | 677 | 290 | 360 | 480 | 290 | 390 | 40 | 24 | 95 | 50 | 14x5.5 | 125 | 70 | 20x7.5 | 215 | |
| 250 | 705 | 420 | 552 | 360 | 250 | 824 | 350 | 460 | 560 | 380 | 480 | 45 | 28 | 110 | 60 | 18x7 | 155 | 90 | 25x9 | 360 | |
