| 型號 Size |
傳動比 Ratio |

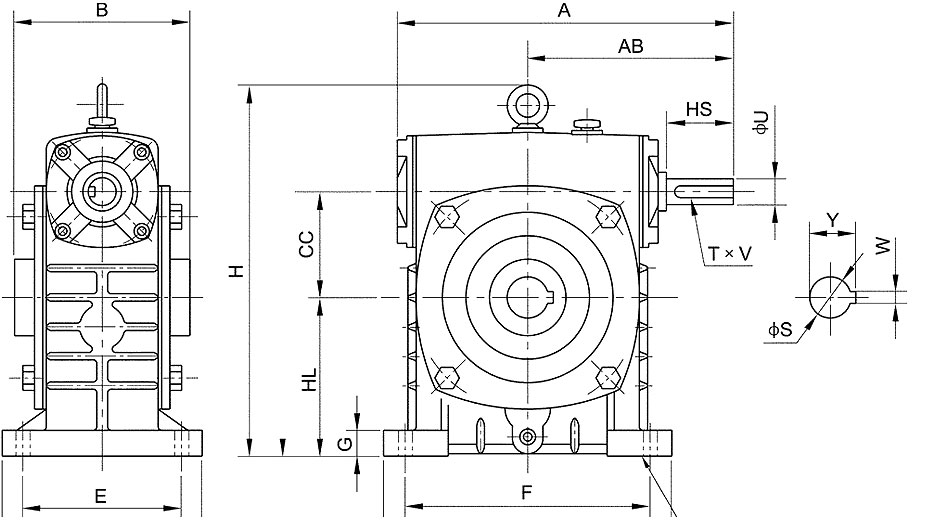

A | AB | B | CC | H | HL | M | N | E | F | G | Z | 輸入軸 Input Shaft | 輸出軸 Output Shaft | 重量 Weight (Kg) |
|||
| HS | U | TxV | S | WxY | |||||||||||||||
| 40 | 10 15 20 25 30 40 50 60 |
143 | 87 | 90 | 40 | 141 | 60 | 90 | 100 | 70 | 80 | 13 | 10 | 25 | 12 | 4x2.5 | 16 | 5x18.3 | 4.5 |
| 50 | 175 | 107 | 110 | 50 | 180 | 80 | 120 | 140 | 95 | 110 | 15 | 12 | 30 | 12 | 4x2.5 | 20 | 6x22.8 | 7.5 | |
| 60 | 198 | 122 | 120 | 60 | 207 | 90 | 130 | 150 | 105 | 120 | 20 | 12 | 40 | 15 | 5x3 | 25 | 8x28.3 | 11.5 | |
| 70 | 231 | 140 | 132 | 70 | 238 | 105 | 150 | 190 | 115 | 150 | 20 | 15 | 40 | 18 | 6x3.5 | 30 | 8x33.3 | 15.5 | |
| 80 | 261 | 160 | 150 | 80 | 270 | 120 | 170 | 220 | 135 | 180 | 20 | 15 | 50 | 22 | 6x3.5 | 35 | 10x38.3 | 24 | |
| 100 | 322 | 190 | 174 | 100 | 331 | 150 | 190 | 270 | 155 | 220 | 25 | 15 | 50 | 25 | 8x4 | 40 | 12x43.3 | 39 | |
| 120 | 381 | 229 | 180 | 120 | 423 | 180 | 230 | 320 | 180 | 260 | 30 | 18 | 65 | 30 | 8x4 | 45 | 14x48.8 | 57 | |
| 135 | 433 | 260 | 214 | 135 | 482 | 215 | 250 | 350 | 200 | 290 | 30 | 18 | 75 | 35 | 10x5 | 60 | 18x64.4 | 85 | |
| 155 | 504 | 302 | 256 | 155 | 541 | 235 | 275 | 390 | 220 | 320 | 35 | 21 | 85 | 40 | 12x5 | 70 | 20 x 74.9 | 110 | |
| 175 | 545 | 325 | 282 | 175 | 594 | 260 | 310 | 430 | 250 | 350 | 40 | 21 | 85 | 45 | 14x5.5 | 80 | 22x85.4 | 152 | |
| 200 | 587 | 350 | 324 | 200 | 677 | 290 | 360 | 480 | 290 | 390 | 40 | 24 | 95 | 50 | 14x5.5 | 85 | 22 x 90.4 | 216 | |
